Xterra Heater Hose Firewall Leak: Fix Guide

Heater Hose Firewall Leak: Complete Fix Guide

The Nissan Xterra is a rugged, capable SUV known for its off-road prowess and dependability. However, like any vehicle, it has its common quirks. One of the most frequent issues owners encounter is the dreaded coolant leak at the firewall. You might notice a mysterious puddle forming under the engine, the sweet smell of antifreeze wafting through your vents, or fogged-up windows that just won't clear. These are all classic symptoms of a failing heater hose right where it enters the cabin.

This problem can affect any Xterra, from the first generation with the 2.4L or 3.3L engine to the second generation with the powerful 4.0L V6. The constant exposure to high temperatures and engine vibration eventually takes its toll on the rubber hoses, causing them to crack, soften, or lose their seal.

Fortunately, this is a repair that a determined DIYer can tackle with basic tools and a bit of patience. This comprehensive guide will walk you through every step of the process, from confirming the diagnosis to replacing the faulty parts and properly bleeding the cooling system. We’ll cover the specific nuances for each engine, ensuring you have the information you need to get your Xterra back on the road, leak-free.

Telltale Signs: How to Spot an Xterra Heater Hose Leak

Before you start tearing into your engine bay, you need to be certain that the heater hoses are the source of your leak. These components share symptoms with a failing heater core, so a correct diagnosis is key. Pay close attention to these specific signs that point directly to a coolant leak near the firewall.

• Coolant Puddles: You may find a puddle of coolant on the ground directly below the firewall, typically on the passenger side of the vehicle. In more severe cases, coolant can leak through the firewall and saturate the passenger-side floor mat and carpet.
• Sweet Odor: Antifreeze has a distinct, sweet, almost maple syrup-like smell. If you notice this odor inside the cabin, especially when the heater is running, it’s a strong indicator of a leak in the heater circuit.
• Fogged Windows: A coolant leak inside the cabin will evaporate and condense on the inside of your windows, creating a greasy, persistent fog that is difficult to clear with your defroster.
• Loss of Heating Performance: An air pocket in the cooling system caused by a leak can prevent hot coolant from circulating through the heater core, leaving you with lukewarm or cold air blowing from the vents.
• Engine Overheating: Any significant coolant leak will eventually lead to low coolant levels, which can cause your engine to overheat. Always monitor your temperature gauge if you suspect a leak.

Diagnosing the Source: Heater Hose vs. Heater Core

The symptoms of a leaking heater hose can be frustratingly similar to those of a failing heater core. Pinpointing the exact source is crucial, as replacing the hoses is a relatively straightforward DIY job, while replacing the heater core involves removing the entire dashboard and is a much more intensive repair.

Visual Inspection: Your First Line of Defense

Start with a thorough visual inspection when the engine is cold. Pop the hood and, using a flashlight, trace the two heater hoses from the engine back to where they connect to two metal pipes passing through the firewall on the passenger side.

Look for obvious signs of a leak:

• Cracks, Bulges, or Soft Spots: Squeeze the hoses. They should feel firm but pliable. Any hoses that feel mushy, swollen, or brittle need to be replaced.
• Dried Coolant Residue: Look for crusty, colored residue (green, pink, or blue depending on your coolant) around the hose ends, clamps, or on components below the hoses. This is a dead giveaway of a slow leak.
• Active Drips: Check for any fresh coolant dripping from the hose connections.

Inside the cabin, pull back the passenger-side carpet near the firewall. If the carpet and padding are soaked with coolant, the leak could be from the heater core itself or the O-rings where the pipes pass through the firewall.

Using Tools for a Definitive Diagnosis

If a visual inspection isn't conclusive, a cooling system pressure tester is your best friend. This tool attaches to your radiator or coolant reservoir and allows you to pressurize the system without the engine running. Pressurize it to the level specified on your radiator cap (usually 13-16 PSI) and watch the firewall connections closely. You will often see the leak begin to drip or spray, confirming the exact location. For very slow leaks, adding a UV dye to the coolant and inspecting with a black light can reveal the source.

Key Differentiator: If the primary evidence of the leak (drips, residue) is in the engine bay, the heater hoses or clamps are the most likely culprits. If the passenger floor is soaked with coolant and the engine bay is relatively dry, the heater core is the stronger suspect.

Gearing Up: Tools and Parts for the Job

Having the right tools and parts on hand before you start will make this job much smoother and prevent a mid-repair trip to the auto parts store. Gather everything you need to ensure a professional and lasting repair.

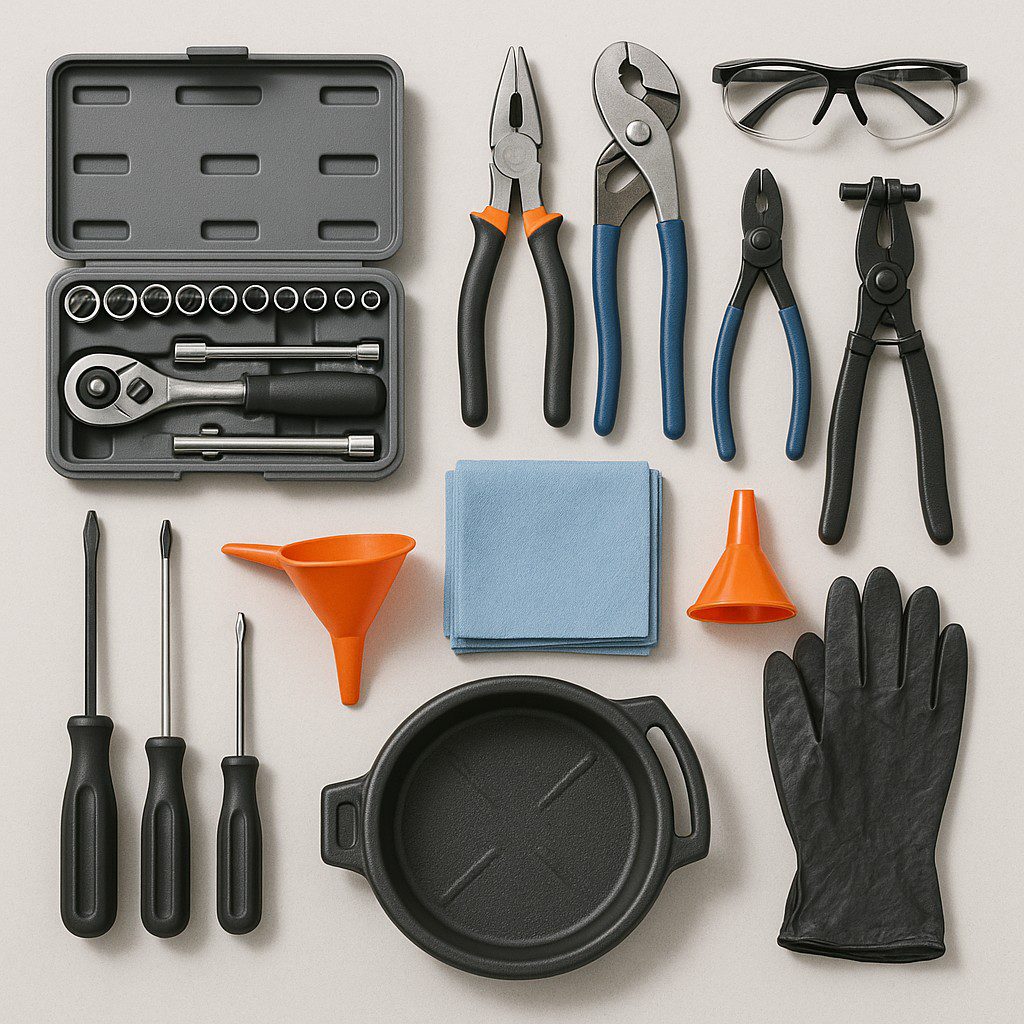

Essential Tools

• Socket and Wrench Set
• Pliers (Needle-nose and channel-lock)
• Hose Clamp Pliers (Highly recommended for factory spring-style clamps)
• Flathead and Phillips Screwdrivers
• Coolant Drain Pan (at least 3-gallon capacity)
• Shop Rags or Towels
• Funnel (A no-spill coolant funnel kit is ideal for bleeding)
• Safety Glasses and Gloves

Replacement Parts Checklist

It is critical to use the correct hoses and coolant for your specific Xterra engine to ensure proper fitment and system longevity.

Replacement Heater Hoses (OEM Part Numbers)

Engine Model	Model Years	Inlet Hose P/N	Outlet Hose P/N
KA24DE 2.4L I4	2000–2004	92400-3S500	92410-3S500
VG33E/ER 3.3L V6	2000–2004	92400-4S100	92410-4S100
VQ40DE 4.0L V6	2005–2015	92400-EA200	92410-EA200

Note: High-quality aftermarket hoses from brands like Gates or Dayco are also excellent alternatives.

Coolant Type and Capacity

Engine Model	Model Years	Recommended Coolant	Approx. System Capacity
KA24DE 2.4L I4	2000–2004	Nissan Green or compatible Asian Pink	7.7 qt (7.3 L)
VG33E/ER 3.3L V6	2000–2004	Nissan Green or compatible Asian Pink	11.6 qt (10.95 L)
VQ40DE 4.0L V6	2005–2015	Nissan Blue Long-Life	10.8 qt (10.2 L)

Always use a 50/50 mixture of antifreeze and distilled water.

Step-by-Step Guide to Replacing Xterra Heater Hoses

Now that you've diagnosed the leak and gathered your supplies, it's time to get to work. We'll break down the repair process, including specific tips for each Xterra engine.

Safety and Preparation First!

1. Work on a Cool Engine: Ensure the engine is completely cool to the touch to avoid burns.
2. Disconnect Battery: Disconnect the negative terminal on your battery to prevent any electrical shorts.
3. Depressurize System: Slowly twist the radiator cap to the first stop to release any residual pressure, then remove it completely.
4. Drain Coolant: Place your drain pan under the radiator's drain petcock (usually a small plastic valve on the bottom). Open the petcock and allow the system to drain completely.

General Replacement Steps (All Engines)

1. Clear Access: To reach the hoses at the firewall, you will likely need to remove components like the battery, battery tray, and the air intake ducting/airbox. This is a necessary step to give your hands and tools enough room to work.
2. Locate & Label: Identify the two heater hoses at the firewall. Before removing them, use masking tape or a marker to label them (e.g., "top" and "bottom") to ensure they go back in the same orientation.
3. Remove Clamps: Use hose clamp pliers or standard pliers to squeeze the tabs on the spring clamps and slide them down the hose, away from the fitting. If you have worm-drive clamps, use a screwdriver or nut driver to loosen them.
4. Remove Old Hoses: The hoses may be stuck fast. Do not just yank on them, as you could damage the heater core pipes. Instead, carefully twist the hose back and forth to break the seal. If it’s still stuck, you can carefully slit the hose lengthwise with a utility knife at the fitting and peel it off.
5. Clean Fittings: Once the hoses are off, use a small wire brush or emery cloth to clean any corrosion, dirt, or old rubber from the metal pipes on the firewall and the engine. A clean surface is essential for a good seal.
6. Install New Hoses: Compare the new hoses to the old ones to ensure the length and shape are correct. Slide the new clamps onto the new hoses before installing them. Push each hose fully onto its corresponding fitting until it bottoms out.
7. Position Clamps: Slide the clamps into position, placing them about a quarter-inch from the end of the hose, just behind the raised bead on the metal pipe. Release the spring clamp or tighten the worm-drive clamp until it is snug. Do not overtighten, as this can damage the new hose.
8. Reassemble: Reinstall the air intake, battery tray, and battery. Ensure the new hoses are not kinked or rubbing against any sharp edges. Reconnect the negative battery terminal.

Engine-Specific Considerations

• KA24DE 2.4L (2000-2004): Access is relatively straightforward after removing the battery. The hoses are located low on the passenger side of the engine bay.
• VG33E/ER 3.3L (2000-2004): These engines often have an air bleed screw on or near the thermostat housing, which is critical for bleeding the system later. Access can be tight, so removing the air intake ducting is essential.
• VQ40DE 4.0L (2005-2015): For the best access on the 4.0L V6, you will need to remove the plastic intake plenum cover. Be aware that this engine also has smaller coolant lines running to the throttle body; inspect these for leaks as well while you are working in the area. This engine does not have a dedicated bleed screw.

The Final Steps: Refilling and Bleeding the Cooling System

You've replaced the hoses, but the job isn't done yet. Properly refilling the system and removing all air pockets is absolutely critical to prevent overheating and ensure your heater works correctly. An air pocket trapped in the system can cause serious engine damage.

1. Initial Fill: With the drain petcock closed, slowly pour a 50/50 mix of the correct coolant and distilled water into the radiator until it is full. A no-spill funnel makes this process much cleaner and easier.
2. Bleed the Air (3.3L Engine): If you have the 3.3L V6, locate the bleed screw near the thermostat. Loosen it slightly while you fill the radiator. When a steady stream of coolant flows out of the screw with no air bubbles, tighten it.
3. Start the Engine: For all engines, leave the radiator cap off (or the cap on your no-spill funnel). Start the engine.
4. Turn on the Heater: Turn your Xterra's heater control to the highest temperature setting and the fan to a medium speed. This opens the heater core circuit, allowing coolant to circulate and push air out.
5. Top Off and Burp: As the engine warms up and the thermostat opens, you will see the coolant level in the radiator drop. Continue to add coolant to keep it full. Gently squeeze the large upper radiator hose to help "burp" air pockets out of the system. You will see bubbles coming up in the radiator.
6. Wait for Bubbles to Stop: Continue this process until the engine reaches normal operating temperature, your heater is blowing hot air, and you no longer see air bubbles coming up in the radiator. This can take 15-20 minutes.
7. Finalize: Once the air is purged, securely install the radiator cap. Fill the plastic overflow reservoir to the "MAX" line.
8. Test Drive: Take the vehicle for a short test drive. After it cools down completely, re-check the coolant level in both the radiator (carefully!) and the overflow tank, and top off as needed.

Tips & Tricks for a Leak-Free Future

A little proactive care can save you from repeating this repair down the road. Here are some expert tips to extend the life of your cooling system and prevent future leaks.

• Proactive Replacement: Don't wait for a hose to fail and leave you stranded. Plan to replace all major coolant hoses (radiator, heater, etc.) and their clamps every 10 years or 100,000 miles as part of your vehicle's preventative maintenance schedule.
• Clamp Choice Matters: While factory spring clamps are effective, many experienced DIYers prefer to replace them with high-quality, smooth-banded worm-drive clamps. They provide more consistent clamping force and are easier to tighten in cramped spaces. Just be careful not to overtighten and cut into the new hose.
• Coolant is Key: Using the correct type of coolant for your Xterra's generation is non-negotiable. Old, depleted, or incorrect coolant loses its anti-corrosive properties and can accelerate the breakdown of rubber hoses from the inside out. Stick to a compatible Asian Green/Pink for 1st Gen models and Nissan Blue for 2nd Gen models.
• Look Beyond the Leak: When one hose fails due to age, others are likely on borrowed time. Use this repair as an opportunity to thoroughly inspect the upper and lower radiator hoses, water pump area, and thermostat housing for any other signs of seepage, bulging, or wear.

Troubleshooting Common Post-Repair Problems

Even with a careful repair, you might run into an issue. Here’s how to troubleshoot the most common problems after replacing your firewall heater hoses.

The Leak is Still There!

If you still see drips after the repair, don't panic. First, re-check that your new clamps are positioned correctly behind the pipe's bead and are adequately tightened. If the clamps are good, use your pressure tester again to confirm the leak's exact source. It's possible the leak was misdiagnosed and is actually coming from the heater core pipes' O-rings at the firewall, or from the heater core itself.

My Heater is Blowing Cold Air!

This is the most common post-repair issue and is almost always caused by an air pocket trapped in the heater core. The solution is to repeat the bleeding procedure. Ensure you let the engine run long enough to get fully up to temperature, allowing the thermostat to open completely and circulate coolant through the entire system.

Common Mistakes to Avoid

• Forgetting to Clean the Fittings: A small piece of old hose or corrosion on the metal pipe can prevent the new hose from sealing properly.
• Over-tightening Clamps: A worm-drive clamp only needs to be snug. Cranking it down with excessive force can cut into the new hose and cause a leak.
• Incorrect Hose Routing: Make sure the hoses are routed as they were from the factory, free of kinks and not rubbing against the engine or other components, which could cause premature wear.
• Rushing the Bleed Process: Be patient when bleeding the system. It can take time to purge all the air, but it's the most critical step for the health of your engine.

Heater Hose Leak FAQ

• What are the common signs of a heater hose firewall leak on a Nissan Xterra?
  Coolant puddles under or inside the vehicle, a sweet antifreeze smell in the cabin, persistent foggy windows, loss of heating performance, and engine overheating can all indicate a leak.
• How do I confirm the leak is from the heater hoses and not the heater core?
  Visually inspect the hoses for cracks, bulges, dried coolant, or active drips at the firewall. Check if the passenger floor mat is wet (suggesting heater core). A cooling system pressure tester or UV dye can help pinpoint the leak’s origin.
• What tools do I need for replacing the heater hoses?
  Basic set: socket and wrench set, pliers (needle-nose and channel-lock), hose clamp pliers, screwdrivers, coolant drain pan, shop rags, funnel, and safety gear.
• Which replacement hoses and coolant types are recommended for my Xterra?
  Use OEM or high-quality aftermarket hoses specific to your engine model. Coolant type varies: Asian Green/Pink for 2000–2004, Nissan Blue for 2005–2015; always mix 50/50 with distilled water.
• What are the general steps to replace Xterra heater hoses?
  Work on a cool engine, disconnect battery, depressurize and drain coolant, remove obstructions (battery, airbox), label hoses, remove old hoses, clean fittings, install new hoses and clamps, and reassemble.
• How do I properly refill and bleed the cooling system after the repair?
  Refill radiator with correct coolant/water mix, bleed air at bleed screw (if applicable), run engine and heater, squeeze hoses to expel air, top off coolant as bubbles stop, and recheck levels after a test drive.
• What are expert tips for preventing future heater hose leaks?
  Replace all major hoses and clamps every 10 years/100,000 miles, consider using worm-drive clamps for easier maintenance, always use correct coolant, and inspect other cooling system parts during repairs.
• What should I do if I still notice a leak or my heater blows cold after repair?
  Double-check clamp position and tightness, re-inspect fittings, use pressure tester to confirm leak source, and repeat bleeding if there’s cold air (likely an air pocket is trapped).
• What are some common mistakes to avoid during this repair?
  Not cleaning fittings, overtightening clamps, incorrect hose routing (causing kinks or abrasion), and rushing the bleed process (leading to air pockets in the system).
• Is this a DIY job an average owner can do, or should I visit a shop?
  With patience and basic tools, most intermediate DIYers can tackle this repair using detailed guides. For persistent leaks or if dashboard removal is needed, professional help is advisable.

Conclusion - You can DIY Fix an Xterra Heater Hose Leak

Tackling a Nissan Xterra heater hose firewall leak is a rewarding project that can save you a significant amount of money compared to a shop repair. It’s a common wear-and-tear item, but with the right diagnosis, proper parts, and a methodical approach, it's well within the reach of an intermediate DIY mechanic. By following the steps outlined in this guide, you can confidently restore your cooling system's integrity and ensure your Xterra is ready for its next adventure.

Remember that the key to a long-lasting repair lies not just in replacing the failed part, but in the details: cleaning the fittings, using the correct coolant, and being meticulous with the air-bleeding process. Now that you're armed with this knowledge, you can inspect your hoses with confidence and address any issues before they leave you stranded. Happy wrenching!
